Portable Hand Brush

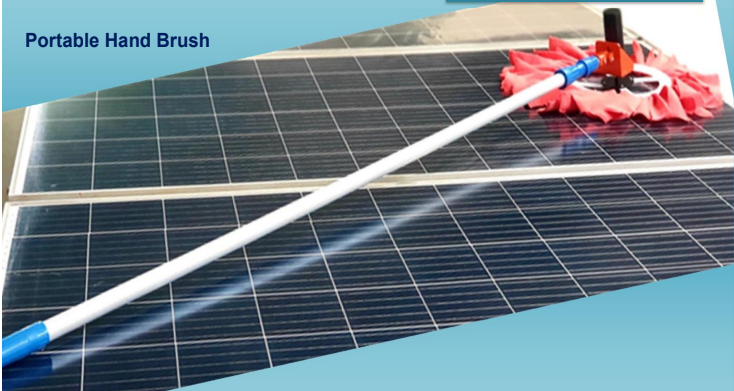

A simple Portable Hand Brush for cleaning the accumulated dust on the solar panel is shown in above Image. Soiling is one of the main reasons for power conversion losses in PV modules. The design includes provision for dry cleaning the panels. Panel is cleaned using a rotor brush made of microfiber cloth. An increase in power output of the panel is reported after cleaning the panel
using roller brush.

Specification :

Brush Material : Microfiber Cloth
Brush Type : Rotary
Brush Life : 22000 Panels
Battery Type : Li-Ion Batteries
Battery Life Cycle : 1500 Charge cycles
Continuous operation : 2 to 3 Hours
Handle Length : 1 Meter to 6Meters
Meters Motor used : Geared DC Motor
Life : 3000 Hours
Brush Size : 600mm
Number of Brush : 1
Handle Material : Aluminum
Panels Cleaned in 1 Hr : ~600
Weight : ~1.6Kg
(Basedon length /material of the handle it may
change)
Charging Details:
PortablePowerSupply : Input 230VAC
ChargingTime : 2 Hours
Max. Inclination angle : Any Angle
Bestsuitablefor : Rooftop installation/
between turbo ventilators
The telescopic tube allows the user to manipulate the
movements of the tool handle to reach solar panels.
that might otherwise be impossible to clean.
It is designed to clean solar panels faster, safer, easier and is better for the environment.
Easy to man oeuvre in space restricted area.
